FEATURES OVERVIEW:

- Up to 8 independent output channel drive - Axes (Open Loop Servo / Stepper Motor).
 -  Ultra-smooth pulse generation.
 -  High precision motor control using high step frequency pulse generation from 100KHz to 2MHz.
- Up to 9 independent Quadrature/Non-Quadrature Position Encoder Inputs.
- Any number of General Programmable Digital I/O (As requested).
- Optional Required Features could be supported.



APPLICATIONS OVERVIEW:

- CNC Routers.
- CNC Lathes.
- CNC Plasma.
- Robotics.
- 3D Printers.
- Laser Machinery.
- ....



SERVICES OVERVIEW:

- Consultancy in PCB design (any level) and selecting proper FPGA chip.
- Initialization and prototyping of board (FPGA / microcontroller circuit).
- Developing HDL code for FPGA based on the requirements.

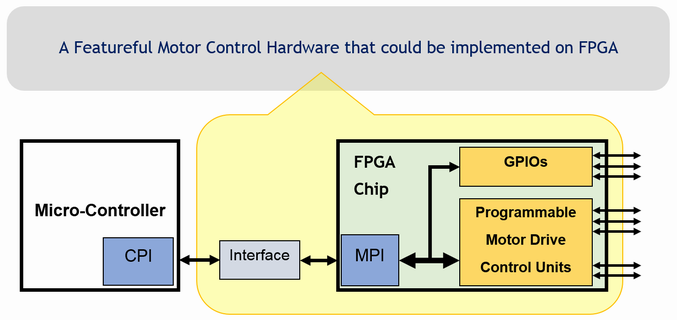

- Developing driver code to configure FPGA by micro-controller.





PROTOTYPES OVERVIEW:

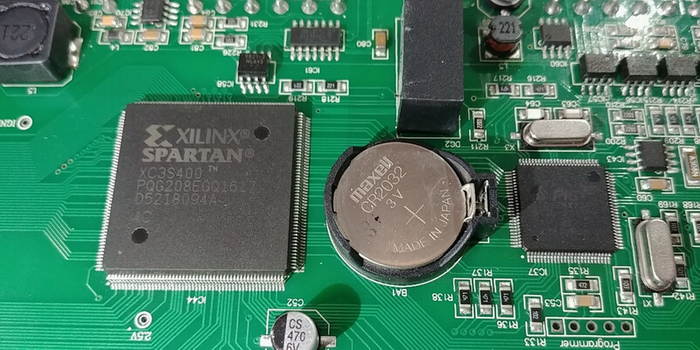

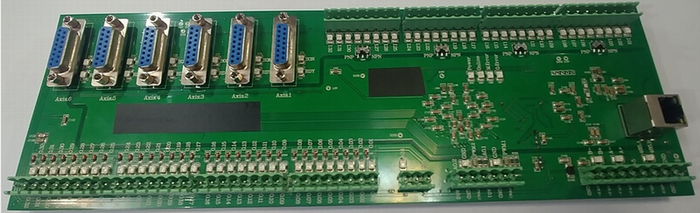

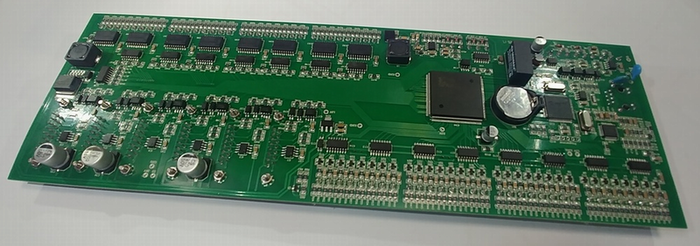

- Open Loop CNC controller with 6 Axes implementation:
